Rig 5

Rig Manager:

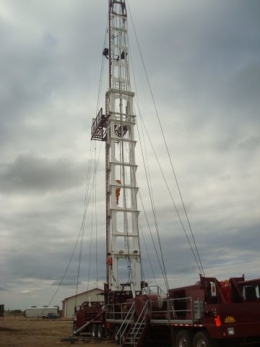

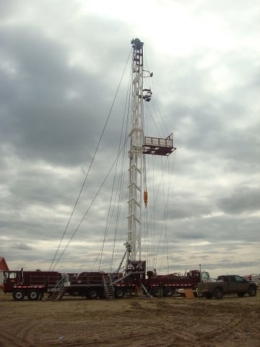

Freestanding Mobile Double Service Rig

2010 Courtney Berg Industries CBI 105p1d
365hp Cummins -QSL / Allison 4700 OFS / Namco 256
Tandem / Tridem Axel Configuration
Alco 450 Draw Works 42 x 10 main drum with 1 inch drill line and Kobelt assist disc brake
3650m (12,000 ft) 9/16inch Sandline – Depthometer
32m (105 ft) Double / Triple Mast (205 000lbf, 90,200daN)
Pipe rating 4000m.
Crown Saver
Ram Saver
1 Man Rated Winch
1 Auxiliary Utility Winch
Designed to be light using; T100 steel, fiber grate fold up walkways and working floor to yield  less than 42,000kg (92,594lbs) GVW fully dressed.

Pump Truck

2011 Freightliner M2 / CBI Ultra-Light Pump Truck
410hp Detroit Diesel -dd13 / Allison 4700OFS / Spicer 792
Single / Tandem Axel Configuration
SJ Petro 300 Pump / 4” Bowie E.D. Charge Pump
External control console
Seven Valve Manifold System

Mud Tank

2010 CBI Ultra-Light 32
200bbl. (32 m3) Capacity
Mechanical Tank Gauge
Man lift
310ft of 2 inch line pipe with safety cables

Equipment Truck

2011 Freightliner M2 / CBI Transporter
300hp Cummins -ISC / Allison 3500 RDS
Single / Tandem Axel Configuration
Equipped with tool cabinets and custom deck for hauling tools, tongs and BOPs.

Doghouse

2010 Demby; office, workshop & locker-room (8’X36’)
40kw 3phase outside mounted light plant
40' Triple Axle Dually Trailer
Electric Heat and Air Conditioning
Incinerator toilet

Additional Features

Townsend T81 7-1/16” 3000psi double gate BOP’s
Tubing Tongs 58-93R
Rod Tongs 5/8” to 1”
Tubing Handling Equipment 2 3/8”, 2 7/8”, 3 ½”
Hydraulic Pack-off Head
Low Lying/Shallow Well Slips
Swabbing Equipment for 2 3/8”, 2 7/8”, 3 ½”
